| *Please contact your local Pro-face
distributor about MPI, or see the user manual. |
| Functional
Specifications |
 |
|
| Item/Model |
ST403-AG41-24V |
| Type |
Monochrome LCD |
| Color |
Monochrome, 2 levels of
gray/
Monochrome, 8 levels of gray*1
(Color switching is done via
software) |
| Backlight |
LED Backlight*2
|
| Resolution |
320 x 240pixels |
| Display
Area |
W76.7mm [3.02in.] x
H57.5mm [2.26in.] |
| Brightness Adjustment |
2 levels of adjustment
available via touch panel. (Amber only) |
| Contrast
Adjustment |
8 levels of adjustment
available via touch panel. |
| Language
Fonts |
ASCII: (Code page 850)
Alphanumeric (incl. Eur. characters)
Chinese: (GB2312-80
codes) simplified Chinese fonts
Japanese: ANK 158, Kanji :
6,962 (JIS Standards 1 & 2)(including 607 non-kanji
characters)
Korean: (KSC5601 - 1992 codes) Hangul
fonts
Taiwanese: (Big 5 codes) traditional Chinese fonts |
| Text |
8x8 dots |
40 Char. x 30 rows |
| 8x16 dots |
40 Char. x 15 rows |
| 16x16 dots |
20 Char. x15 rows |
| 32x32 dots |
10 Char. x 7 rows |
| Character |
Character
Sizes*4 |
8x8, 8X16, 16X16 and
32X32 dot fonts |
| Font Sizes |
Width can be expanded 1
to 8 times.
Height can be expanded 1/2*5, 1 to 8 times. |
| Memory |
Application |
User screen area
640KB
(Approx. 200 screens at 3.2KB/screen) |
| Data
Backup |
96KB User backup
memory |
| Uses a rechargeable
lithium battery*6 |
| Touch
Panel Resolution |
8 x 6 keys/screen
(minimum size 40 X 40 dots)
1 or 2 point push -
selectable*7 |
| Function
keys |
Switches: 6 |
| Interfaces |
Network Interface
(X) |
Ethernet (IEEE802.3)
10BACE-T |
| Serial I/F (Y) |
Asynchronous
Transmission: RS-232C/RS-422 (Selected by
software)
Data Length: 7 or 8 bits
Stop Bit: 1
or 2 bits
Parity: None, Odd or Even
Data Transmission
Speed: 2,400bps to 115,200bps |
| Tool Connector
(TOOL) |
Asynchronous TTL level
nonprocedural command I/F
<During screen file
development>
Used for transferring data to and from the
ST application software and the ST.
< During
Operation>
Used for a variety of devices, including a
bar-code reader. |
| *1 |
Depending on the color used, selecting
MONOCHROME 8 HUES may cause the ST unit's screen to
flicker and make it difficult to distinguish shades.
Confirm that all colors display as expected prior to
using this mode. |
| *2 |
Among backlight units there may be slight
variations in illumination color, however, this does not
effect the performance or quality of the ST unit. |
| *3 |
The intended use of red backlight is for
special circumstances only. This red backlight has a
shorter functional lifespan than the amber
backlight. |
| *4 |
The display font will differ depending on
which (language) character, or which size you select.
|
| *5 |
Only available when using "1/2 2 Byte
Character" settings via software.
(Only Japanese,
Chinese, Taiwanese, and Korean characters.) |
| *6 |
A Lithium battery's lifetime is: 10 years
when ST's ambient temperature is 25 oC or
less. |
| *7 |
If 2 point push function is selected, the
screen areas touched must be separated by at least one
grid unit.
Please contact your local Pro-face office
for more information.
| | |
| General
Specifications |
|
|
| Item/Model |
ST403-AG41-24V |
| Rated
Voltage |
DC24 V |
| Rated
Voltage Range |
DC19.2V to 28.8V |
| Power
Consumption |
7W or less |
| Allowable Voltage Drop |
2ms or less |
| In-Rush
Current |
50A or less*1 |
| Voltage
Endurance |
AC500V 20mA for 1
minute
(between charging and FG terminals) |
| Insulation Resistance |
20Mohm or higher at
DC500V
(between charging and FG terminals) |
Ambient
Operating Temperature
(Cabinet Interior) (Panel Face) |
0ｰC to +50ｰC*2 |
| Storage
Temperature |
-20ｰC to +60ｰC |
| Operating Humidity |
10%RH to 90%RH
(Non condensing,
wet bulb temperature: 39 ｰC or less) |
| Storage
Humidity |
10%RH to 90%RH
(Non condensing,
wet bulb temperature: 39 ｰC or less) |
| Air
Purity (Dust) |
0.1mg/m3 or less (non-conductive
levels) |
| Pollution Degree |
Pollution Degree 2 |
| Corrosive Gasses |
Free of corrosive gasses |
Atmospheric Endurance
(ST Operation
Altitude) |
800hPa to 1,114hPa (2,000 meters
or lower) |
| Vibration Resistance |
IEC61131-2 compliant
When
vibration is NOT continuous
10Hz to 57Hz 0.075mm, 57Hz
to 150Hz 9.8m/s2
When vibration is
continuous
10Hz to 57Hz 0.035mm, 57Hz to 150Hz
4.9m/s2
X, Y, Z directions for 10 times
(80min.) |
Noise
Immunity
(via noise simulator) |
Noise Voltage: 1,000Vp-p Pulse
Duration: 1ｵs Rise Time: 1ns |
| Electrostatic Discharge Immunity |
6kV (complies with EN 61000-4-2
Level 3) |
Ratings*3
(For front panel of installed
unit) |
Equivalent to IP65 (JEM 1030),
NEMA#250 Type4X/12 |
| External
Dimensions |
W130mm [5.12in] x H104mm [4.09in]
x D41mm [1.61in] |
| Weight |
0.4kg (0.88lb) or less |
| Cooling
Method |
Natural air
circulation |
| *1 |
The FWHM (Full-width,
half-maximum) value is approximately 50 us. (When
exceeding 25A)) |
| *2 |
The LCD displays of ST may
occasionally blur when they are used for hours at over
40oC ambient operating temperature. This is a
temporary phenomenon. After the temperature returns to
normal, normal display will be restored. The ST's
operation will not be affected even though the display
is blurred. |
| *3 |
The front face of the ST unit,
installed in a solid panel, has been tested using
conditions equivalent to the standards shown in the
specification. Therefore, prior to installing the ST be
sure to confirm the type of conditions that will be
present in the ST's operating environment. If the
installation gasket is used for a long period of time,
or if the unit and its gasket are removed from the
panel, the original level of the protection cannot be
guaranteed. To maintain the original protection level,
be sure to replace the installation gasket
regularly. | | |

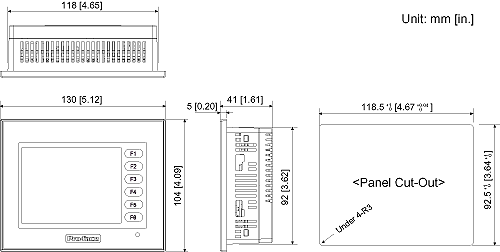

| Dimensions |
|
ST403-AG41-24V |
| |
 |
| |
- All product names used in this page are
the registered trademarks of their respective companies.
-
The unit's photos contained in this page may differ from those
of the actual unit.
- All information in this page is valid
in Apr, 2005.
- All information contained in this page is
subject to change without notice.
|
 |
